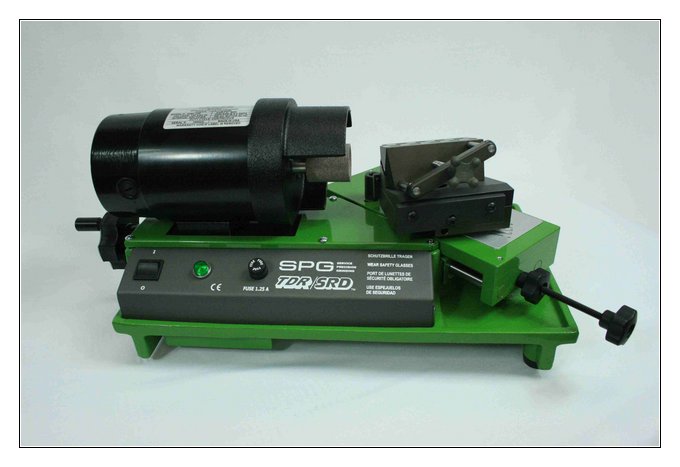

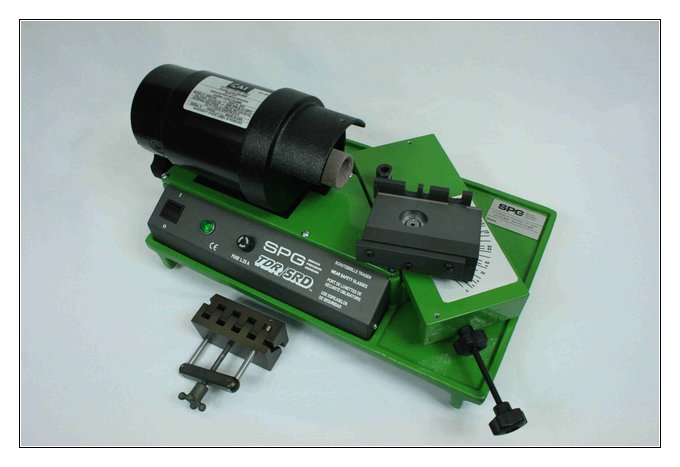

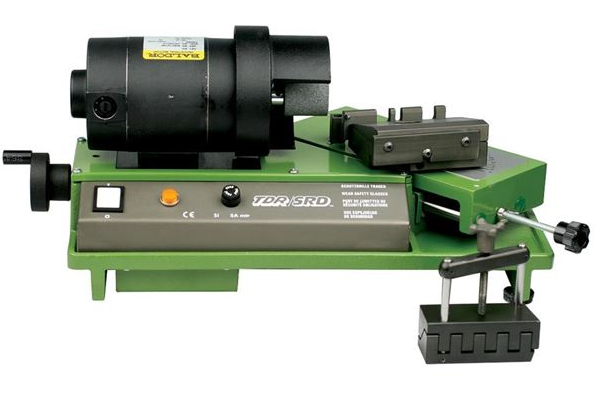

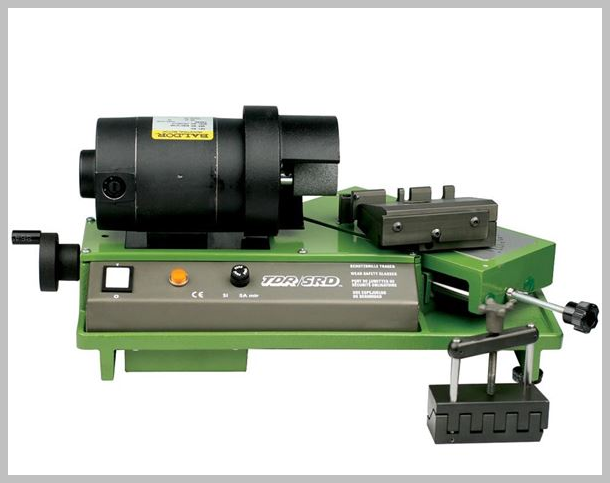

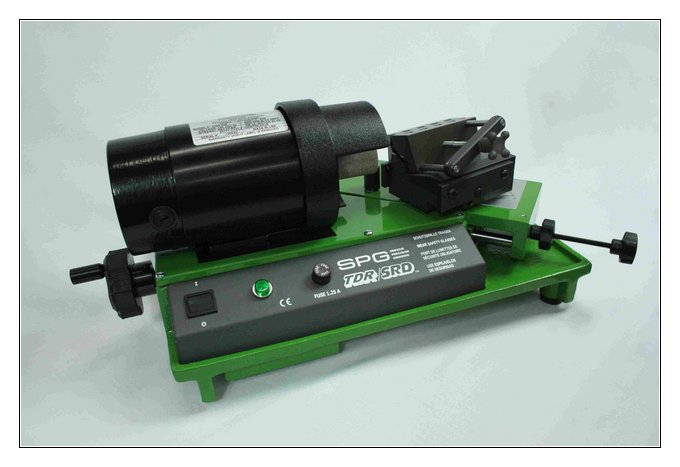

Model 82-R
TDR/SRD Drill Grinder Grinding Range: R.H. 1/16″ – 13/16″
FACTORY PRICE: $1,835.00
Same advantages as 80-M basic unit plus additional features for splitting points on standard or parabolic drills.
• Sharpen high speed steel or carbide tooling
• Increased versatility.
Precise results
• Angle range 85 deg. to 160 deg.
• Relief angles 0 deg. to 20 deg.
• Drill point concentricity is .001″Lip to lip
• Also, for woodworkers, a 60 deg. Spear Point Option for thru-holes.
• Cast iron, aluminum & steel construction
• Totally enclosed motor
• Hardened and ground slide rails
• Drill size capacity and increased versatility varies with each model
• All models built to satisfy industrial quality standards
• Dimensions 10″W x l6″L x 8″H
• Made in the USA | Shipped via UPS | Weight 50 Lbs
•Tap and reamer sharpening capabilities using a 5C collet block with indexing finger (use your own 5C collets).
Call 315-776-9602 to place your Order Email Us for more details!

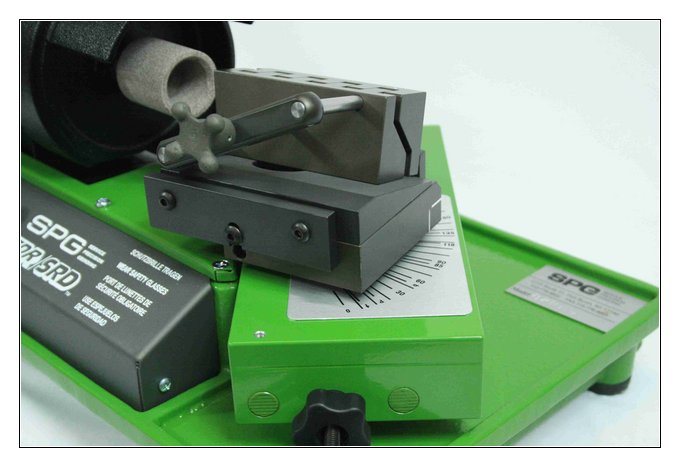

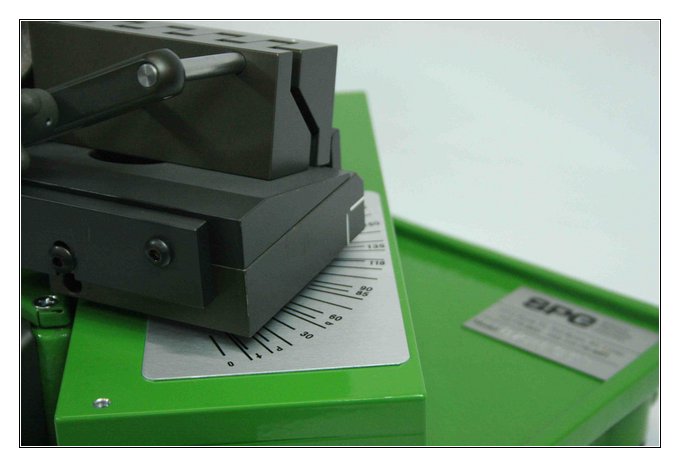

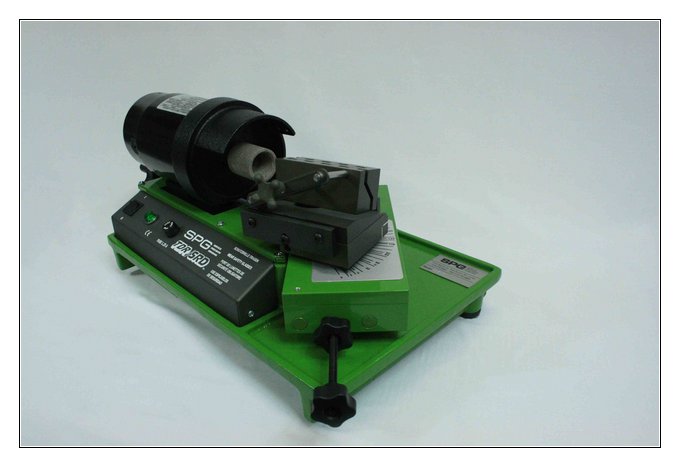

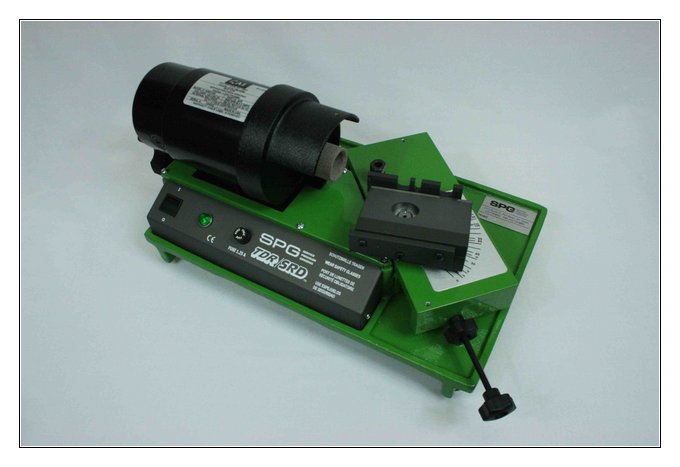

The 82-R Users ManualTDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R
-
- TDR/SRD Drill Grinder – Model 82-R

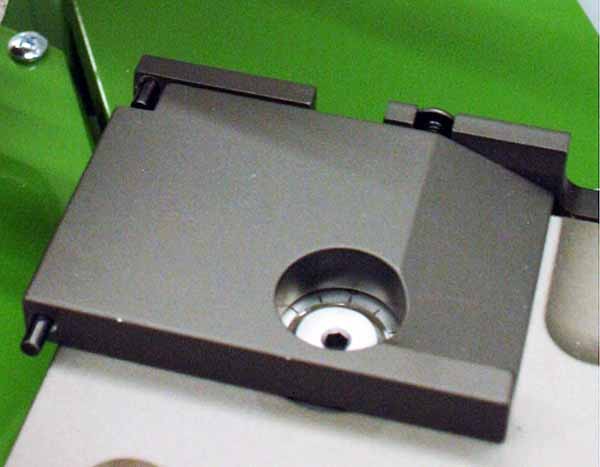

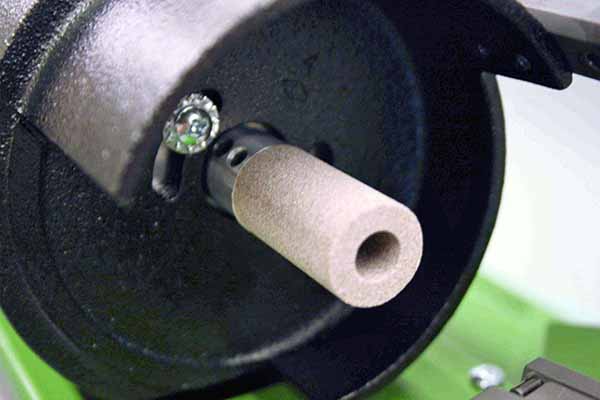

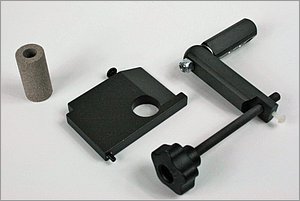

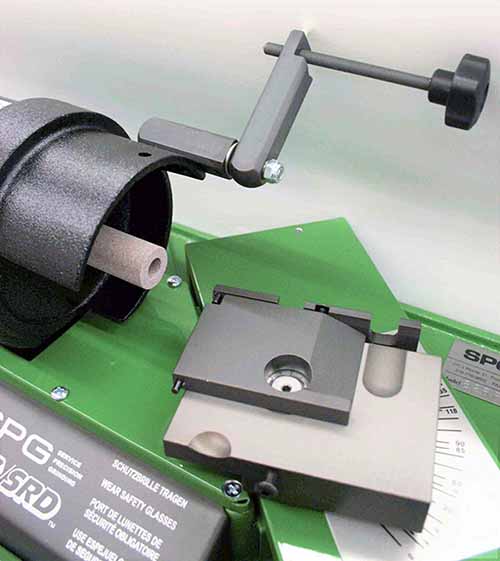

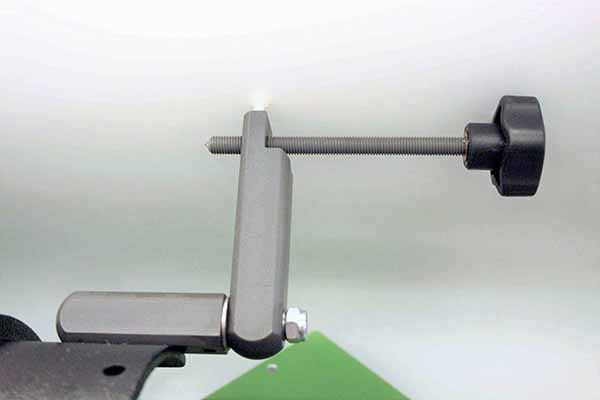

POINT SPLITTING OPTIONAL PACKAGE
FOR 82-R (PBOP/R)
-
- POINT SPLITTING OPTIONAL PACKAGE FOR 82-R (PBOP/R)
-
- POINT SPLITTING OPTIONAL PACKAGE FOR 82-R (PBOP/R)
-
- POINT SPLITTING OPTIONAL PACKAGE FOR 82-R (PBOP/R)
-
- POINT SPLITTING OPTIONAL PACKAGE FOR 82-R (PBOP/R)
Model 82-R Accessories / Replacement Parts
| Std Chuck for Drills 1/16 - 13/16 all Models (76 M 1580-P) | $282.00 ea |  |
| Chuck for Taper Shank Drills, 1/16-13/16 all models (76 M 1582-P) | $363.00 ea |  |
| 120 Grit Silicon/Carbide for Carbide, 1-3/8OD (76 M 1750-P) | $92.00 ea | %20LD.jpg) |

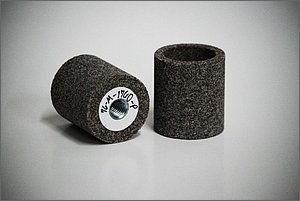

| Fast Cut 60 Grit for HSS & Cobalt, 1-3/8OD (76 M 1760-P) | $26.00 ea | %20LD.jpg) |

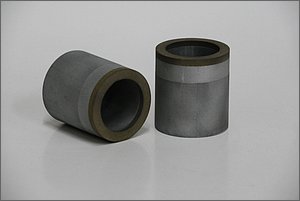

| 180 grit Diamond for Carbide, 1-3/8OD (76 M 1770-P) | $255.00 ea | %20(HD.jpg) |
| Std 90 Grit for HSS & Cobalt, 1-3/8OD (76 M 1790-P) | $26.00 ea |  |

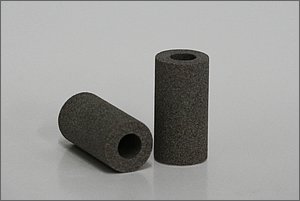

| 120 Grit for HSS & Cobalt 3/4 OD (80 M 7370-P) | $44.00 ea | %20HD.jpg) |
| Riser Plate + 80-M-7370-P (enhances relief on sm. drills) 80-M (80 S 7340-P) | $92.00 ea |  |
| LED Lamp all Models (LED) | $110.00 ea |  |

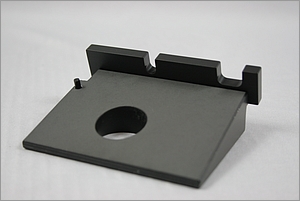

| LEFT HAND DRILL OPTIONAL PACKAGE FOR 82-R (LHOP/R) | $145.00 ea |  |
| POINT SPLITTING OPTIONAL PACKAGE FOR 82-R (PBOP/R) | $374.00 ea |  |

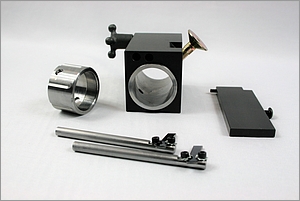

| TAP & REAMER OPTIONAL PACKAGE FOR 82-R (TROP/R) | $558.00 ea |  |
| Diamond Dresser (PBOP/R, PBOP/B, EMOP/B only) 82-R, 82-B (82 B 8670-P) | $61.00 |  |
| PSDD/RB Rotary Dresser for Super Abrasive Wheels……82-R&82-B* *only for PBOP/R, PBOP/B or EMOP/B | $260.00 ea | |
