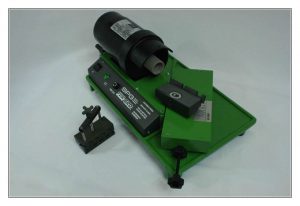

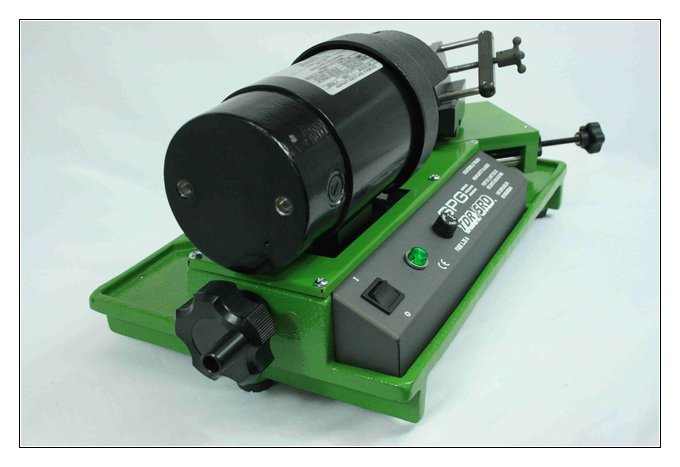

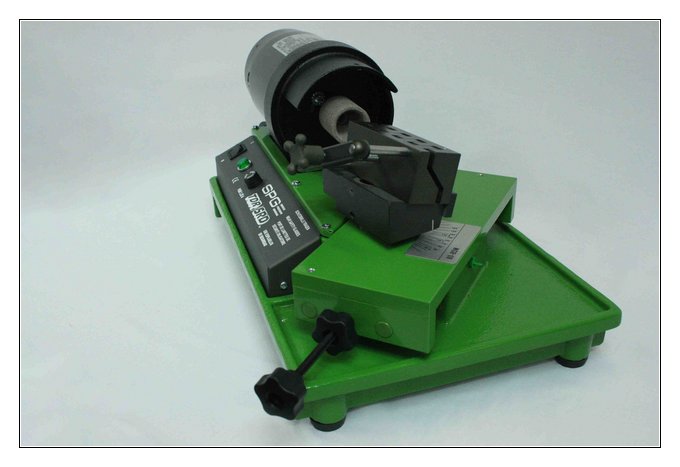

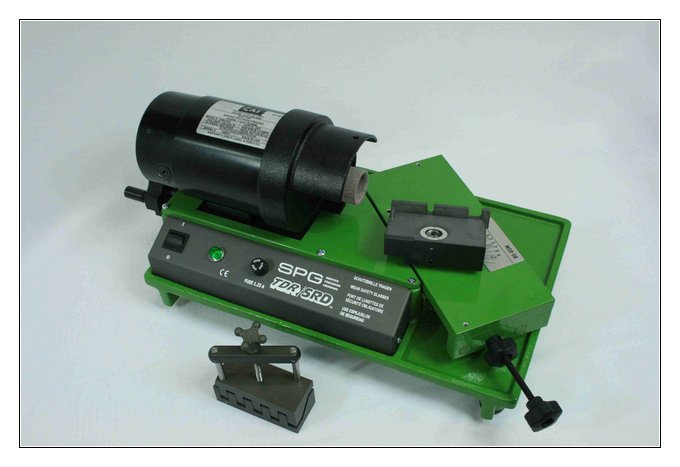

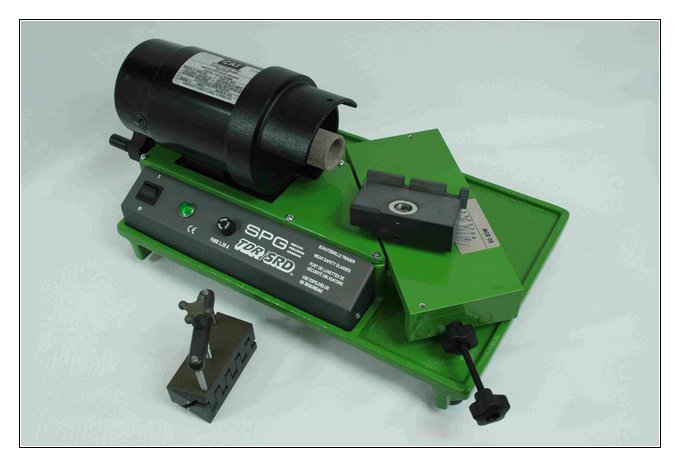

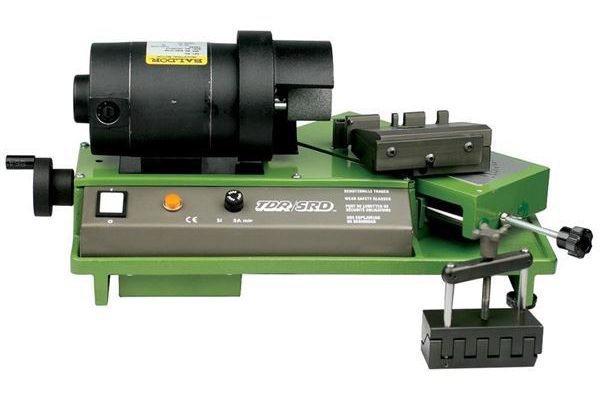

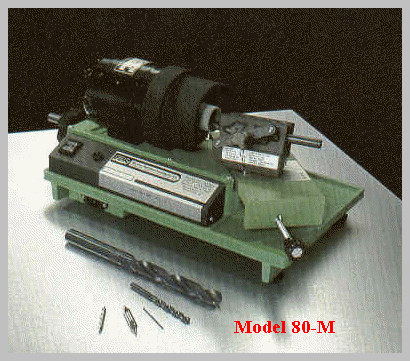

Model 80-M
TDR/SRD Drill Grinder Grinding Range: R.H. Drills 1/16″ – 13/16″
FACTORY PRICE: $1,395.00
Customize point angles and clearances to achieve the most efficient feed rates for your job! The industries “WORKHORSE”
• Sharpens standard drills, center drills and R.H. drills. • Quick web thinning. Sharpen high speed steel or carbide tooling • Angle range 85 deg. to 160 deg. • Drill point concentricity is .001″Lip to lip • Clearance angles 0 deg. to 20 deg. Extremely precise. • Cast iron, aluminum & steel 7 construction • Totally enclosed Baldor motor 1 10V or 230V • Hardened and ground slide rails • Drill size capacity and increased versatility varies with each model • All models built to satisfy industrial quality standards • Dimensions 10″W x l6″L x 8″H • Made in the USA | Shipped via UPS | Weight 50 Lbs. All machines come equipped to sharpen drills within the drill range specified. (They come with the appropriate chuck and grinding wheel)Call 315-776-9602 to place your Order Email Us for more details! New Pictures Coming Soon!
The 80-M Users ManualModel 80-M Accessories / Replacement Parts
| Std Chuck for Drills 1/16 – 13/16 all Models (76 M 1580-P) | $245.00 ea |  |
| Chuck for Taper Shank Drills, 1/16-13/16 all models (76 M 1582-P) | $315.00 ea |  |

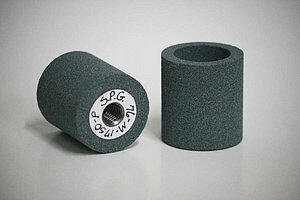

| 120 Grit Silicon/Carbide for Carbide, 1-3/8OD (76 M 1750-P) | $80.00 ea | %20LD.jpg) |

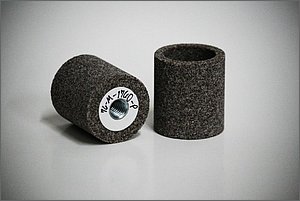

| Fast Cut 60 Grit for HSS & Cobalt, 1-3/8OD (76 M 1760-P) | $22.00 ea |  |

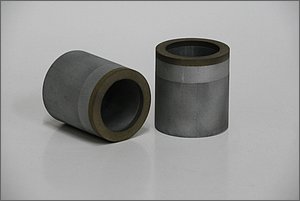

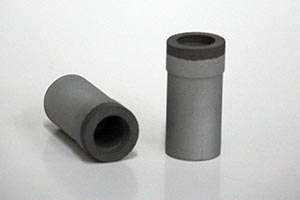

| 180 grit Diamond for Carbide, 1-3/8OD (76 M 1770-P) | $220.00 ea |  |

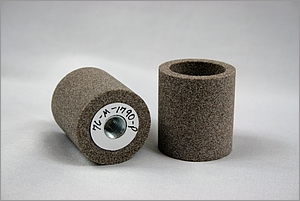

| Std 90 Grit for HSS & Cobalt, 1-3/8OD (76 M 1790-P) | $22.00 ea |  |

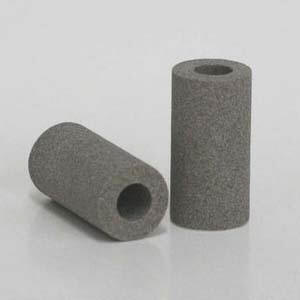

| 120 Grit for HSS & Cobalt 3/4 OD (80 M 7370-P) | $38.00 ea | %20LD.jpg) |

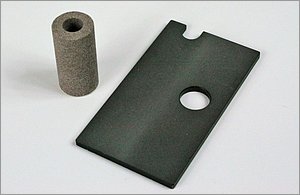

| Riser Plate + 80-M-7370-P (enhances relief on sm. drills) 80-M (80 S 7340-P) | $80.00 ea |  |

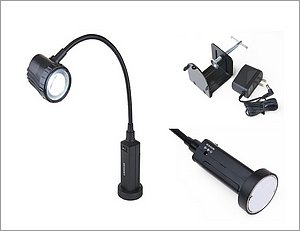

| Incandescent Lamp all Models (ILOP) | TBD |  |

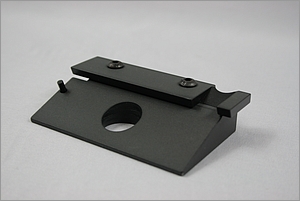

| LEFT HAND DRILL OPTIONAL PACKAGE FOR MODEL 80-M (LHOP/M) | $125.00 ea |  |
